MODEL: Z-85
TRADEMARK: ZHOKK
MAXIMUM FLOW: 40 Bar
MAXIMUM SPEED: 80 l/min
NUMBER OF OUTPUTS: 3

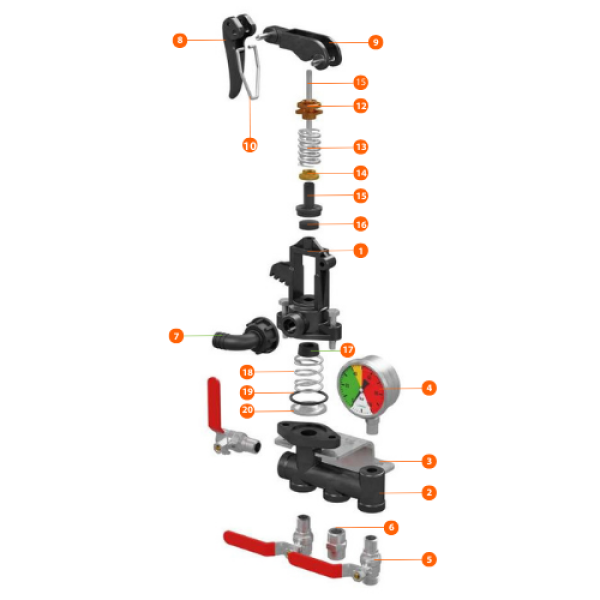

PRODUCT DESCRIPTION:
UPPER CONTROL UNIT HOUSING (1)
LOWER CONTROL UNIT HOUSING (2)
Z85 REGULATOR CONNECTION SHEET (3)
0-100 BAR PRESSURE GAUGE (4)
3/8 X 1/2 BALL VALVE (5)
1/2 X 1/2 NIPPER (6)
3/8 CRANK AND NUT (7)
VALVE ADJUSTING LEVER (8)
VALVE ROD (9)
VALVE WIRE (10)
PRESSOR ADJUSTING SCREW (12)
PRESSOR ADJUSTING SPRING 4.5mm (13)
PRESSOR ADJUSTING SPRING WASHER
PRESSING DEVICE (14)
PRESSING BARS (15)
PRESSING BARS SPACER (16)
CUFF RUBBER (17)
PRESSING SPRING 2.70mm (18)
O-RING 3.53 X 37.69 (19)
PRESSING WASHER (20)
Total price: Upon request
Transport, cost (truck/container):
Upon request
