MODEL: Z-50
TRADEMARK: ZHOKK
MAXIMUM FLOW RATE: 50 Bar
MAXIMUM SPEED: 130 l/min.
NUMBER OF OUTLETS: 4

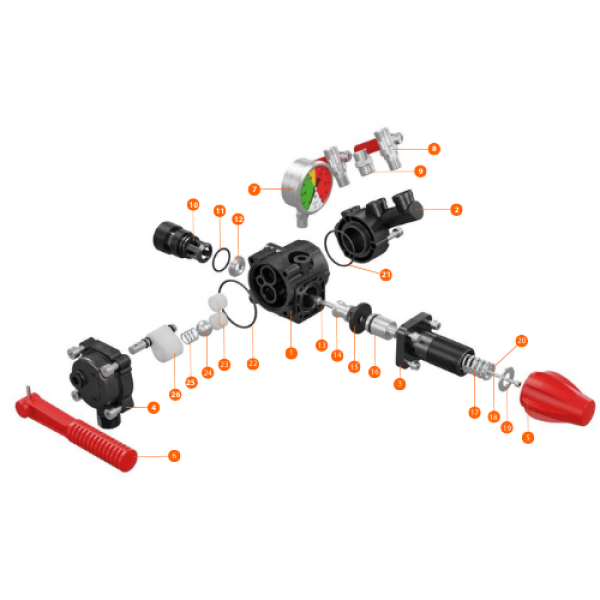

PRODUCT DESCRIPTION:
VDR 50 MAIN FRAME (1)
4-OUTLET DISTRIBUTOR (2)
VDR 50 PRESSURE BODY (3)
VDR 50 SIDE LINING (4)
VDR 50 ADJUSTMENT LEVER (5)
VDR 50 ON/OFF LEVER (6)
0-100 BAR PRESSURE GAUGE (7)
3/8 X 1/2 BALL VALVE (8)
1/2 X 1/2 NPP (9)
VDR 50 GRILLE AND NPP (10)
28.00 X 3.00 SEAL RING (11)
VDR 50 PRESSURE WASHER (12)
M6 X 25 BOLT (13)
VDR 50 RING (14)
VDR 50 MEMBRANE RUBBER (15)
VDR 50 PRESSURE SPACER (16)
VDR 50 PRESSURE SPRING (17)
M5 X 70 BOLT (18)
M16 FLAT WASHER (19)
M5 FLAT WASHER (20)
M543.00 X 3.00 SEAL RING (21)
59.00 X 3.00 SEAL RING (22)
VDR 50 BALL JOINT (23)
VDR 50 BALL (24)
VDR 50 CHROME PRESSURE SPRING (25)
VDR 50 CRANKBEL (26)
Total price: Upon request
Transport, cost (truck/container):
Upon request
