MODEL: Z-85
TRADEMARK: ZHOKK
MEMBRANE: 3 pcs.
MAXIMUM PRESSURE: 50 Bar
MAXIMUM FLOW: 85 l/min.
MAXIMUM SPEED: 540 rpm.
MAXIMUM POWER: 8,5 HP

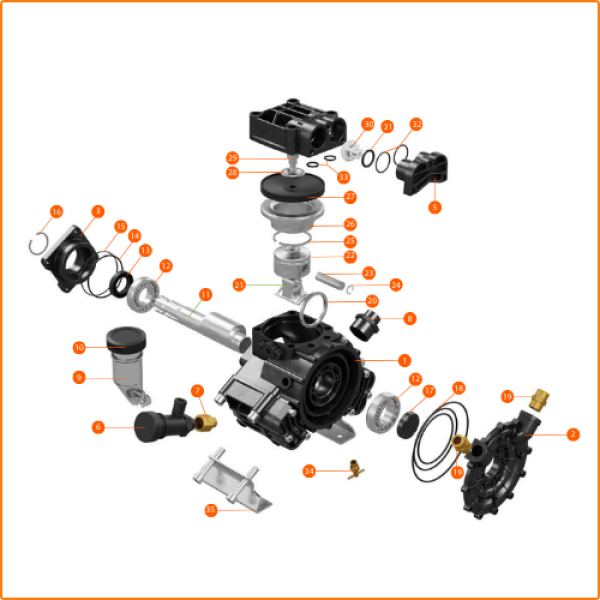

PRODUCT
DESCRIPTION:
Z85 PUMP
HOUSING (1)
FRONT
HOUSING (2)
REAR
BEARING INSERT (3)
PUMP SIDE
LINING (4)
VALVE
COVER (5)
RELIEF
VALVE (6)
3/8x1/2
ADAPTER (7)
1 1/4’’
PLASTIC FITTING (8)
Z85 PUMP
OIL CUNNER (9)
B85 PUMP
OIL CUNNER COVER (10)
CRANKSHAFT
(11)
6207
BEARING (12)
35x55x10
SEAL (13)
63 x 2
O-RING (14)
70 x 3
O-RING RING (15)
472 x 55
SEGMENT (16)
47x10
FLAT SHEET PLUG (17)
FRONT
HOUSING SEAL RING SET (18)
1/2’’ x
1/2’’ Nipple (19)
CONNECTING
ROD THRUST RING (20)
PISTON
ROD (21)
63 mm
PISTON (22)
KING PIN
(23)
472 x 15
SEGMENT (24)
PISTON
SEGMENT (25)
CYLINDER
(SHELL) (26)
DIAPHRAGM
RUBBER (27)
DIAPHRAGM
WASHER (28)
DIAPHRAGM
BOLT (29)
PRESSURE
RELIEF VALVE (INCLUDED) 32 (30)
25 x 4
O-RING (31)
32 x 2
O-RING (32)
18 x 2.5
O-RING (33)
DRAIN
VALVE (34)
Z30 PUMP
FEET (35)
Total
price: Upon request
Transport,
cost (truck/container): Upon request
