WARRANTY:
Available
MODEL: Z-30
TRADEMARK:
ZHOKK
MEMBRANE:
2 pcs.
MAXIMUM
PRESSURE: 40 Bar
MAXIMUM
FLOW: 30 l/min.
MAXIMUM
SPEED: 540 rpm.
MAXIMUM POWER: 3 HP

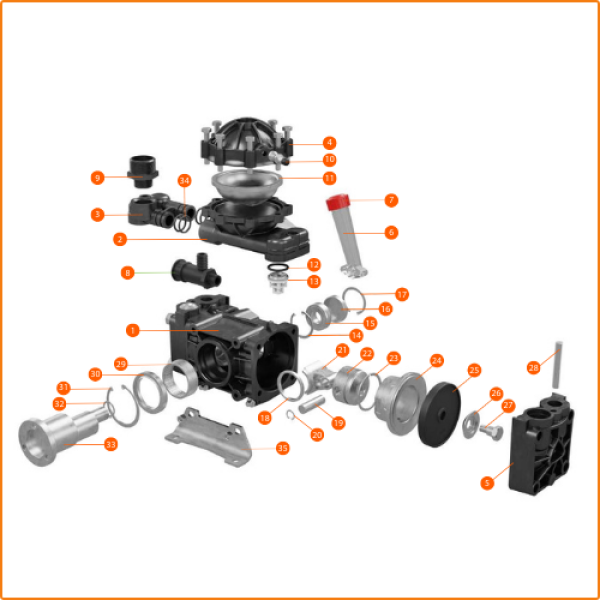

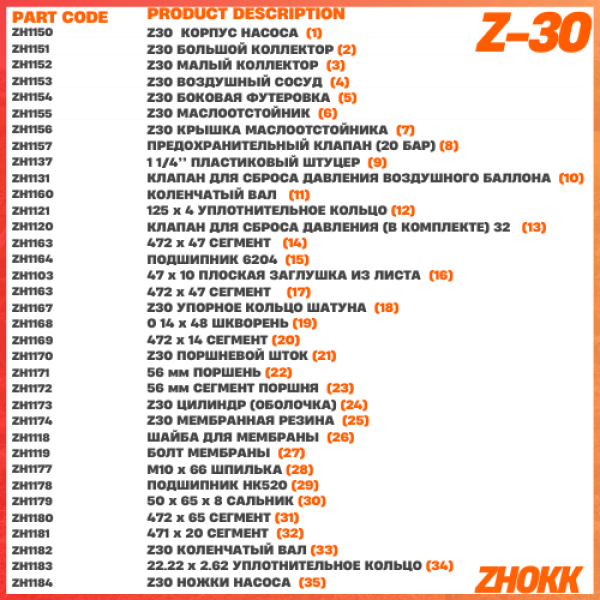

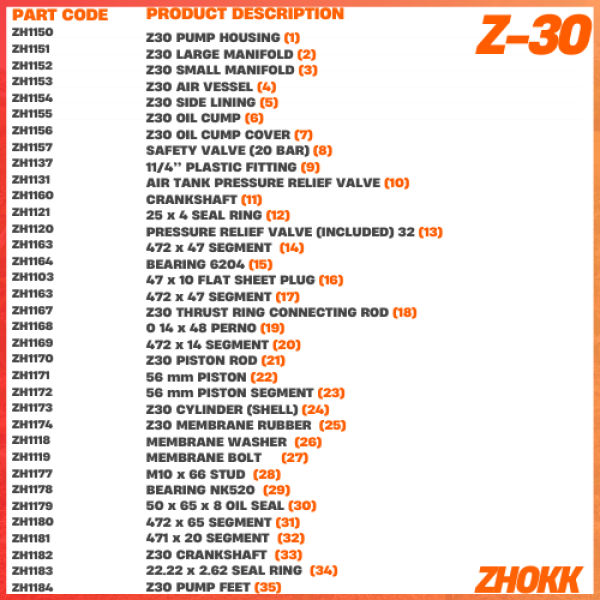

PRODUCT
DESCRIPTION:
1. Z30
PUMP HOUSING
2. Z30
LARGE MANIFOLD
3. Z30
SMALL MANIFOLD
4. Z30
AIR VESSEL
5. Z30
SIDE LINING
6. Z30
OIL CUMP
7. Z30
OIL CUMP COVER
8. RELIEF
VALVE (20 BAR)
9. 1
1/4’’ PLASTIC FITTING
10. AIR
TANK PRESSURE RELIEF VALVE
11. AIR TUBE VALVE
12. 25 x
4 SEAL RING
13.
PRESSURE RELIEF VALVE (INCLUDED) 32
14. 472 x
47 SEGMENT
15.
BEARING 6204
16. 47 x
10 FLAT SHEET PLUG
17. 472 x
47 SEGMENT
18. Z30
CONNECTING ROD THRUST RING
19. 0 14
x 48 PERNO
20. 472 x
14 SEGMENT
21. Z30
PISTON ROD
22. 56 mm
PISTON
23. 56 mm
PISTON SEGMENT
24. Z30
CYLINDER (SHELL)
25. Z30
MEMBRANE RUBBER
26. MEMBRANE
WASHER
27. MEMBRANE
BOLT
28. M10 x
66 STUD
29. HK520
BEARING
30. 50 x
65 x 8 SEAL
31. 472 x
65 SEGMENT
32. 471 x
20 SEGMENT
33. Z30
CRANKSHAFT
34. 22.22
x 2.62 SEAL RING
35. Z30
PUMP FEET
Total
price: Upon request
Transport,
cost (truck/container): Upon request
