MODEL: Z-105
TRADEMARK: ZHOKK
MEMBRANE: 4 pcs.
MAXIMUM PRESSURE: 50 Bar
MAXIMUM FLOW: 105 l/min.
MAXIMUM SPEED: 540 rpm.
MAXIMUM POWER: 13 HP

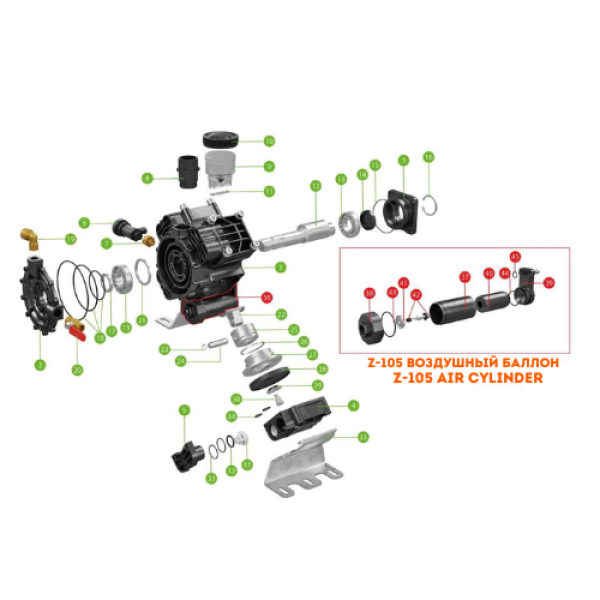

PRODUCT
DESCRIPTION:
Z105 PUMP
HOUSING (1)
FRONT
HOUSING (2)
REAR
BEARING INSERT (3)
PUMP SIDE
LINING (4)
VALVE
COVER (5)
RELIEF
VALVE (6)
3/8x1/2
ADAPTER (7)
1 1/2’’ -
1 1/4’’ PLASTIC FITTING (8)
Z105 PUMP
OIL CUNNER (9)
B85 PUMP
OIL CUNNER COVER (10)
CRANKSHAFT
(11)
6207
BEARING (12)
35x55x10
SEAL (13)
47x10
FLAT SHEET PLUG (14)
63 x 2
SEAL RING (15)
472 x 55
SEGMENT (16)
35x55x10
SEAL (17)
FRONT
HOUSING SEAL RING SET (18)
1/2’’ x
1/2’’ CRANK (19)
1/2’’ x
1/2’’ BALL VALVE (20)
CONNECTING
ROD THRUST RING (21)
PISTON
ROD (22)
472 x 15
SEGMENT (23)
KING PIN
(24)
63 mm
PISTON (25)
PISTON
SEGMENT (26)
CYLINDER
(SHELL) (27)
DIAPHRAGM
RUBBER (28)
DIAPHRAGM
WASHER (29)
DIAPHRAGM
BOLT (30)
PRESSURE
RELIEF VALVE (INCLUDED) 32 (31)
25 x 4
O-RING (32)
32 x 2
O-RING (33)
18 x 2.5
O-RING (34)
Z105 B85
PUMP FEET (35)
Z-105 AIR
TANK (36)
AIR TANK
TUBE (37)
AIR TANK
FRONT HOUSING (38)
AIR TANK
REAR HOUSING (39)
AIR TANK
RUBBER (40)
AIR TANK
WASHER (41)
AIR TANK
PRESSURE RELIEF VALVE (42)
56.82 x
2.62 O-RING (43)
40.95 x
2.62 O-RING (44)
13.95 x
2.62 O-RING (45)
Total
price: Upon request
Transport,
cost (truck/container): Upon request
