CUSTOMIZATION:
Available (Customer Colour, Logo)
CERTIFICATION:
ISO
WARRANTY:
Available
MODEL: CELESTINO
TRADEMARK:
ZHOKK

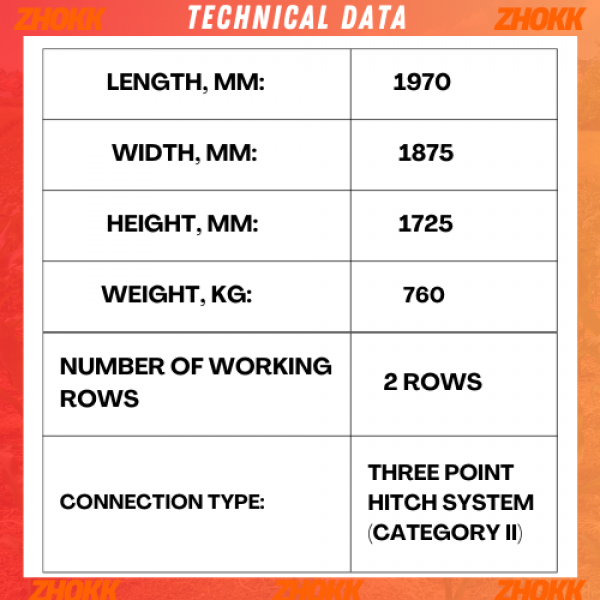

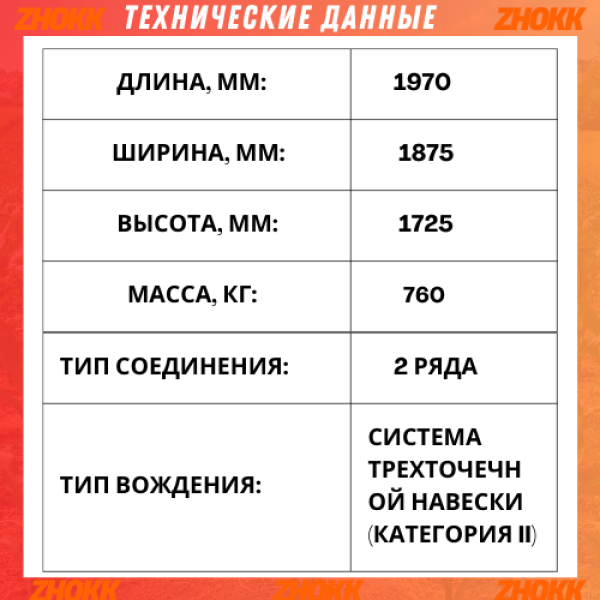

LENGTH,
MM: 1970
WIDTH, MM:
1875
HEIGHT,
MM: 1725
WEIGHT,
KG: 760
CONNECTION
TYPE: Three Point Hitch System (Category II)
NUMBER OF
WORKING ROWS: 2 Rows
POWERED
BY: Own Wheel
ROW
DISTANCE, MM: 700 – 750
SEED
STORAGE CAPACITY, KG: 750 (Might Change According to Seed Dimensions)
TUBER
PLANTATION DISTANCE, MM: 150 - 400 Stepless Gear Setting
SEED POT
TYPE: Metal And Plastic Pot

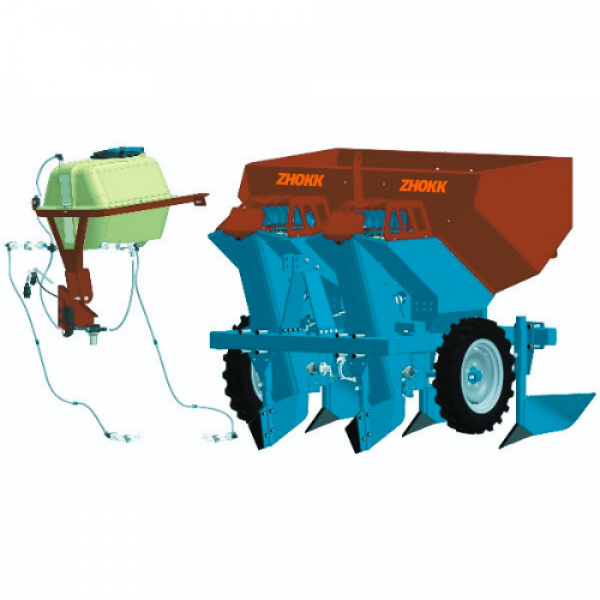

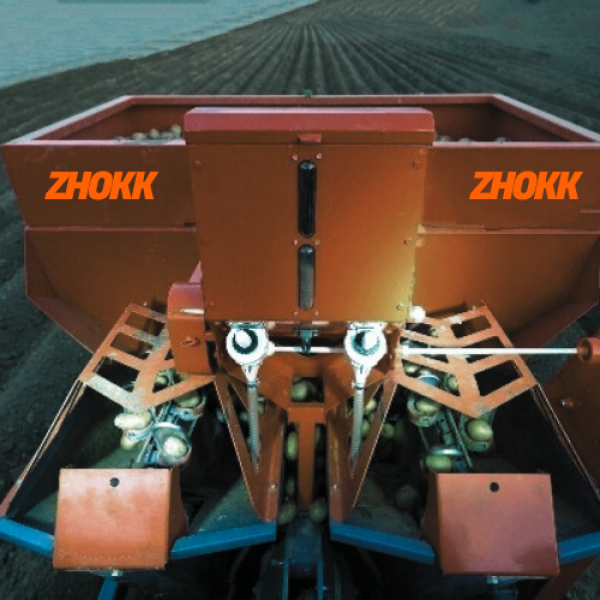

SPRAYER
SYSTEM: There are 4 spray nozzles in the spraying system. During planting, both
seeds and seed beds are sprayed.
TANK
CAPASITY OF PESTICIDE: 100 Lt.
PUMP OF
PESTICIDE: 12 Volt Electric
NOZZLE
QUANTITY: 4 Pcs.

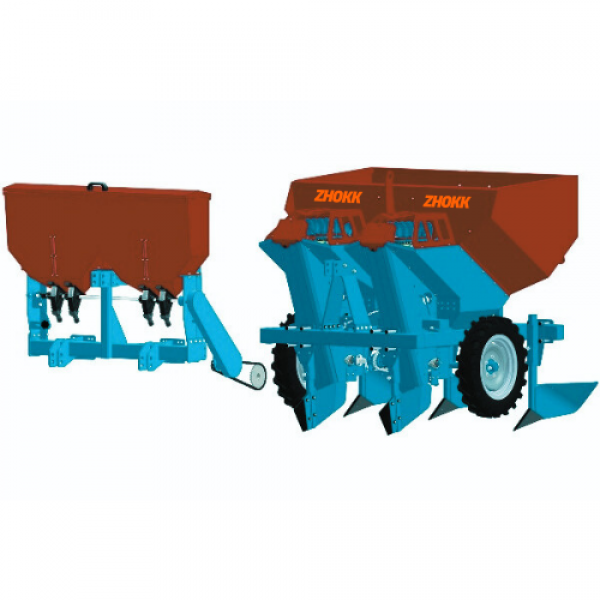

FERTILIZER
SYSTEM: With the fertilizer system, fertilization is done on both sides of the
seed bed during potato planting.
FERTILIZER
STORAGE CAPACITY: 150 - 200 Kg. (Might Vary Depending on the Type of
Fertilizer)
POWERED
BY: The Planting Machines Wheel
FERTILIZING
SYSTEM: Mechanical

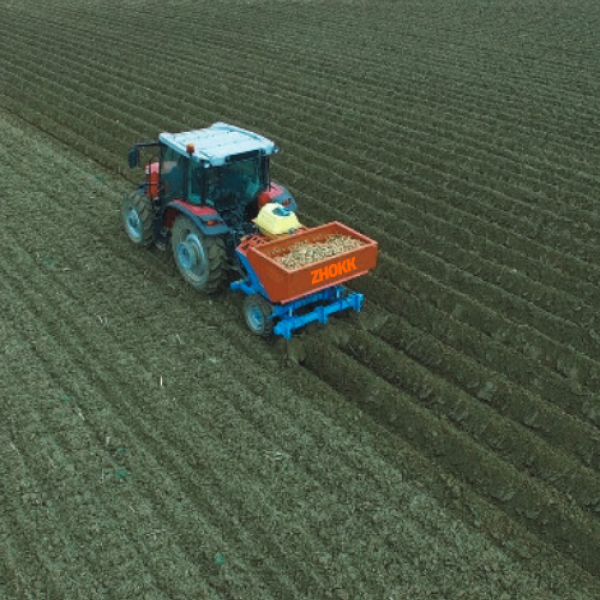

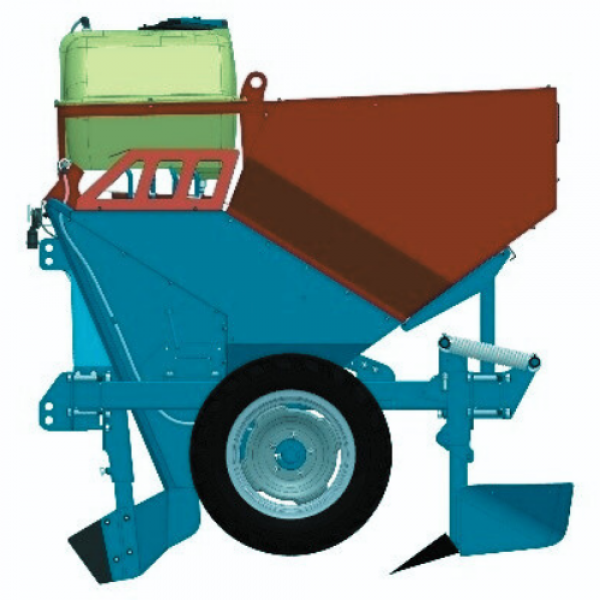

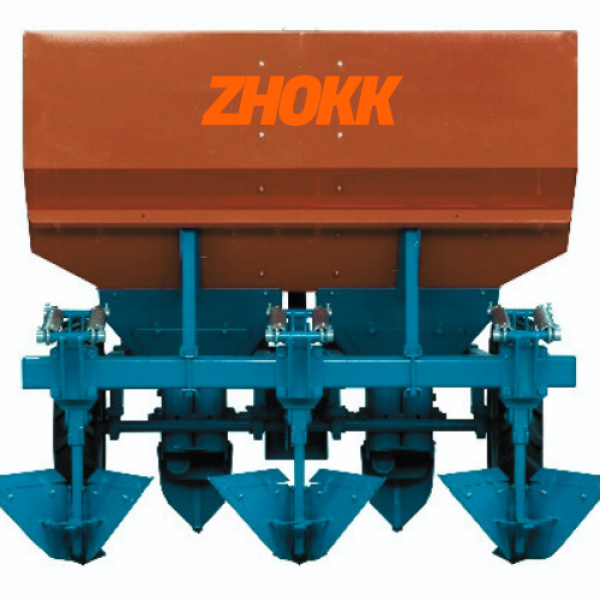

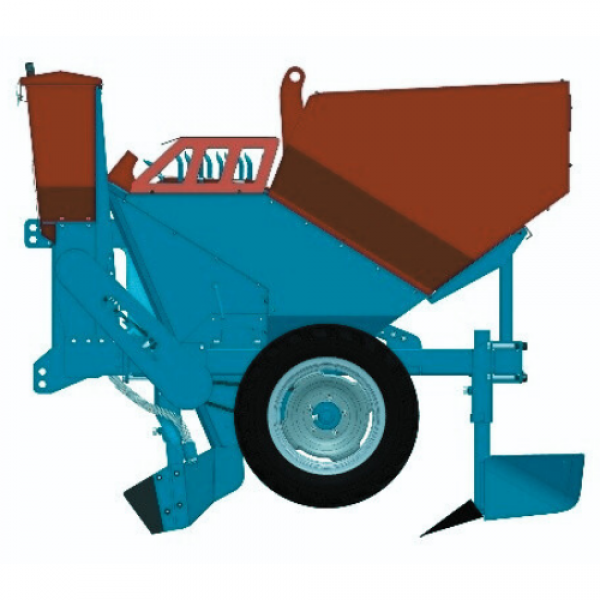

Our Two Rows, Automatic Potato Planter
Machines CELESTINO are connected to a tractor through a three – point hitch
mechanism. Seeds prepared in advance for plantation are filled into the

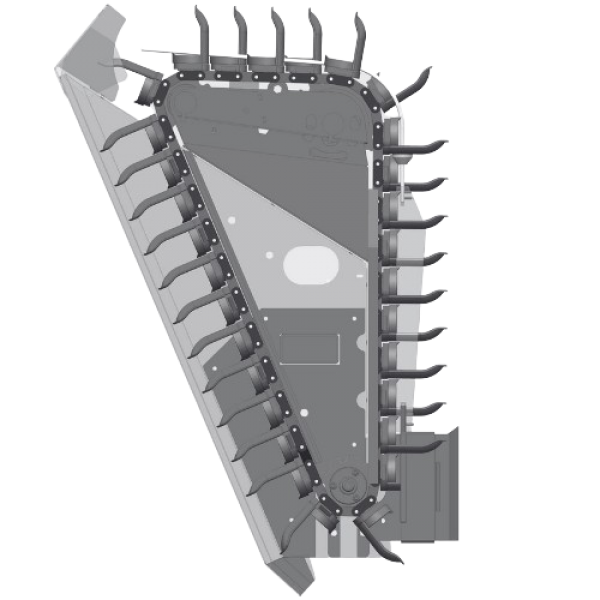

storage. The potato tubers inside the storage are automatically taken by

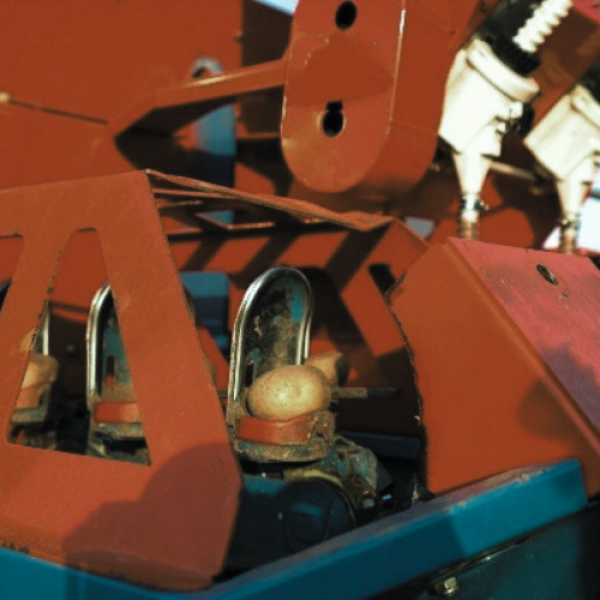

conveyor chain with two rows of metal hollow pots on. The conveyor chain
carries the seeds upper part. While carrying process, if the seeds are too much
on the hollow pots, they are dpopped back from the pots to the storage. The

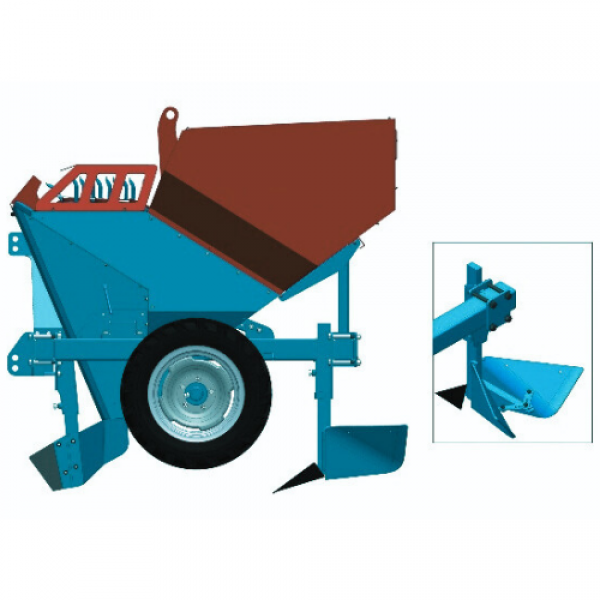

seeds on the pots are dropped to the beds opened by planter tine. Plantation is
completed by covering the dropped seeds with the help of furrow closing
moldboard tines.
If the model with pesticide system is
prefered, while the planting process, seeds are disinfected at the same time, automatically.

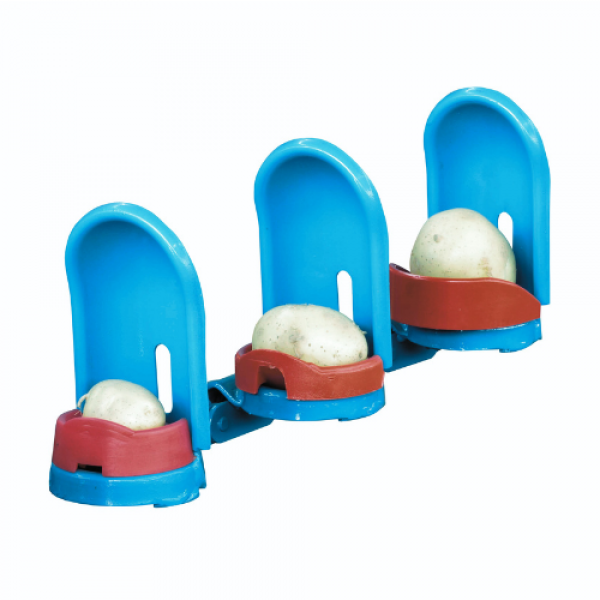

3 Different Pots Selection are supplied for
the excellent planting.
Plantation is performed automatically without
any worker assistance.

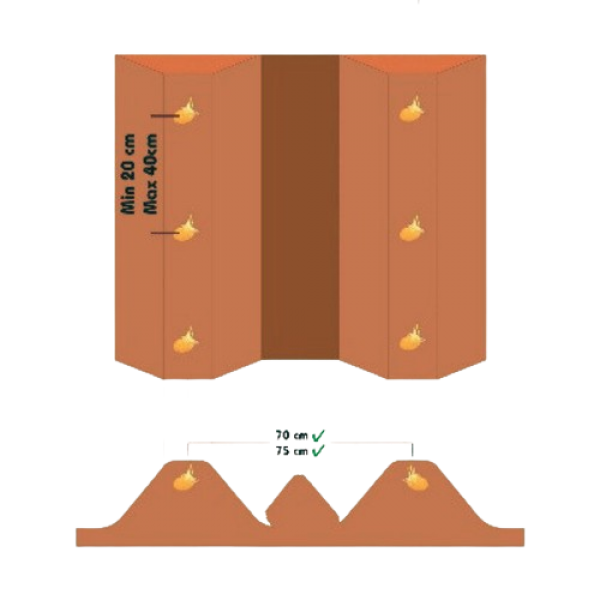

Plantation distance on rows can be adjusted
by using the gears on the machine.

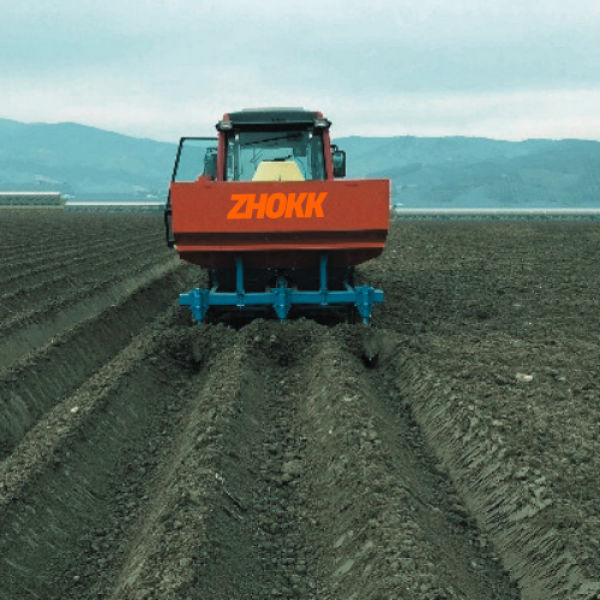

The
furrows created are at equal distances to each other.
As the planting operation is easy and faster,
it enables time-saving.
Ploughshares made of a special heat-treated
steel are resistant against wearing.
Total
price: Upon request
Transport,
cost (truck/container): Upon request
