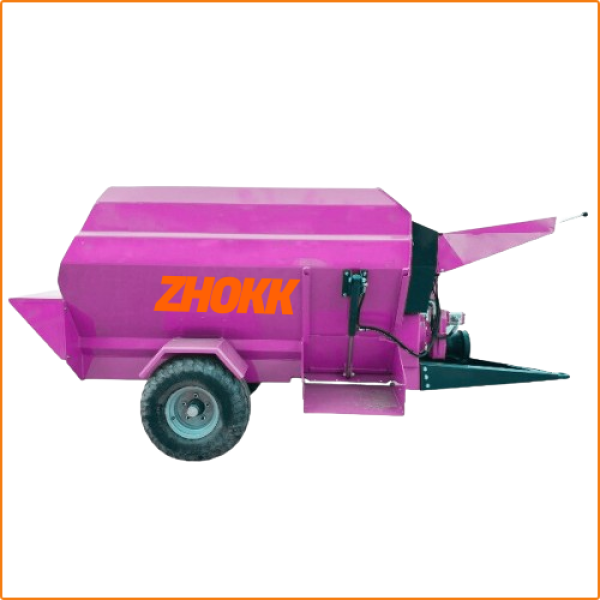

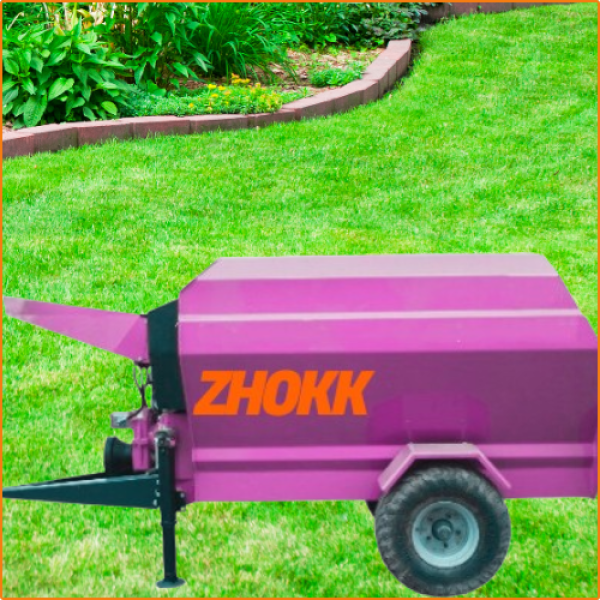

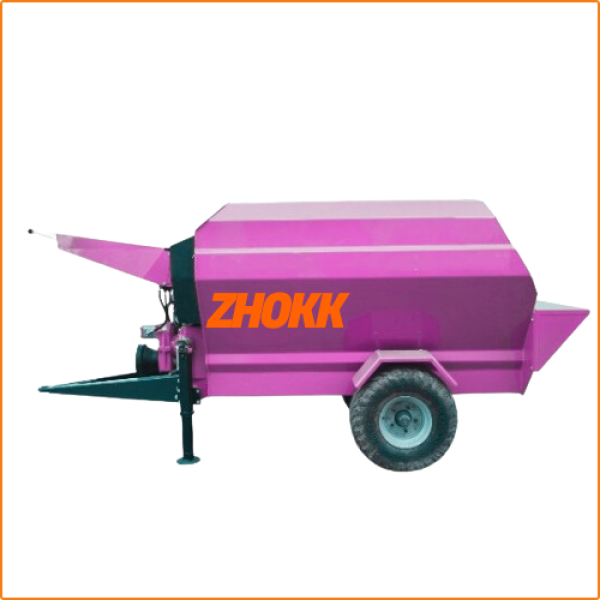

ZHOKK Horizontal Single Auger Feed Mixer
GABRIEL is an efficient feed mixing solution designed for small to medium-sized
operations. Featuring a horizontal mixing system, it blends feed ingredients
uniformly, reducing waste and improving nutritional efficiency. Suitable for
cattle operations with 25-40 heads, the GABRIEL can be easily towed by a
tractor and offers user-friendly maintenance, ensuring convenience in
operation. It is an ideal machine for maintaining healthy and productive
livestock.
CUSTOMIZATION:
Available (Customer Colour, Logo)
CERTIFICATION:
ISO
WARRANTY:
Available
MODEL: GABRIEL
TRADEMARK:
ZHOKK

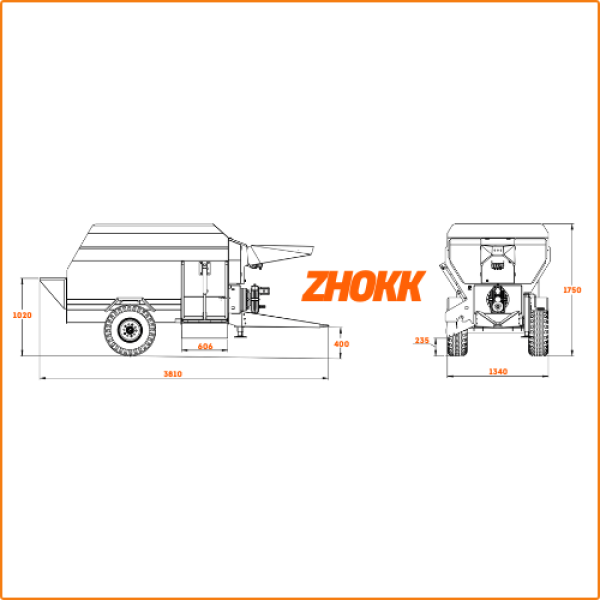

LENGTH, mm:
3810
HEIGHT,
mm: 1750
WIDTH,
mm: 1340
TOTAL
WIDTH, mm: 1710
BODY
SHEET, mm: 4
BASE
SHEET, mm: 6
EMPTY
WEIGHT, kg: 1300
FULL
WEIGHT, kg: 1600
CAPACITY:
2.5m³
MIXING
SYSTEM: 1 Main + 2 Side
NUMBER OF
BLADES: 44
MIN.
POWER REQUIREMENT: 10 HP
PTO
TRANSFER: 540 transfer/dk
GEARBOX
TYPE: Planet
AUGER
SPEED: 25 RPM
WHEEL
SIZE: 10x80x12
FEED
DISCHARGE DIRECTION: Standard (Right)
CONVEYOR
BELT: Optional
KRIKO: Mechanic
BOND RATE:
16
Total
price: Upon request
Transport,
cost (truck/container): Upon request
