Customization: Available (Customer Colour, Logo)

Certification: ISO

Warranty: Available

Model: TIMO

Trademark: ZHOKK

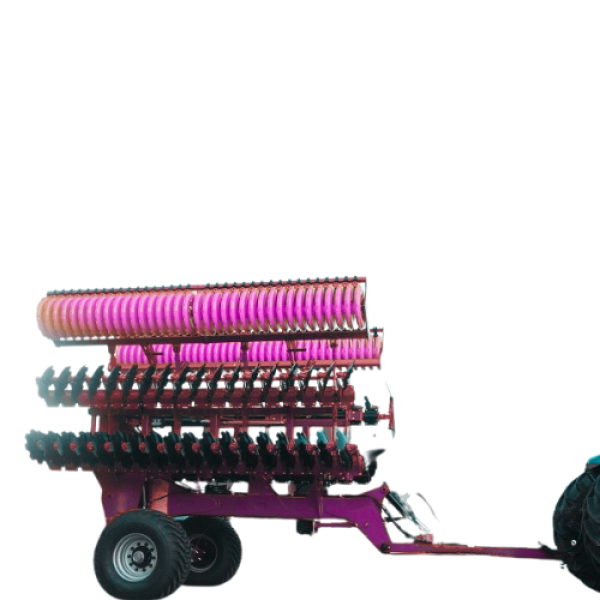

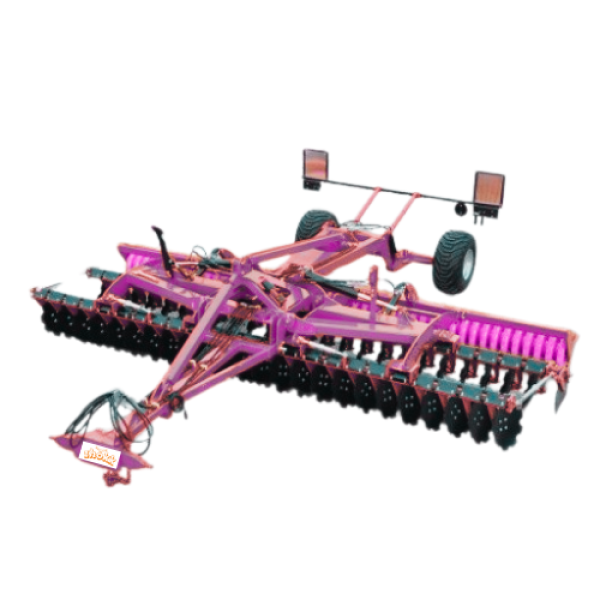

The TIMO Disc Harrow, which has an effective and wide usage area in soil cultivation, especially in stubble processing and seedbed preparation, allows plant residues to be broken down and mixed into the soil without overturning the soil. Efficient farming is thus supported through effective cultivation and the maintenance of the biological balance of the soil. It is suitable for use in heavy and difficult conditions.

A simple design that ensures ease of use, and a reinforced chassis suitable for use in difficult conditions. After cultivating the soil efficiently with specially produced discs, a perfect surface is obtained through soil breaking, compacting, and leveling operations using different types of rollers. Maximum efficiency is achieved due to the 10-15 km/h operating speed. Fuel savings are assured due to the low tractor power required and the discs' optimum cutting and direction angles. All disc arms are mounted on the battery independently and have their own protective rubbers. In this way, machine balance is maintained during soil cultivation, the discs are protected from damage and there is no loss of speed.

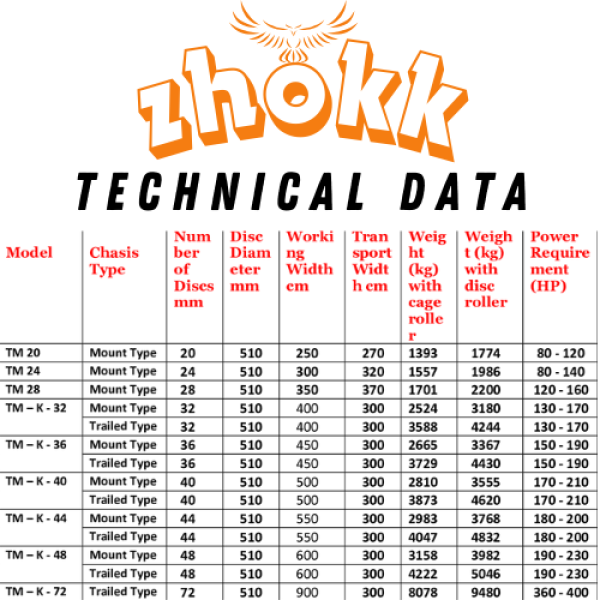

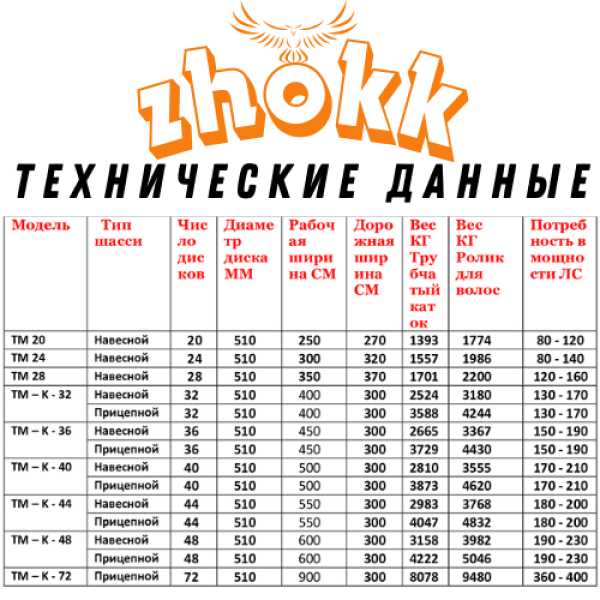

The distance between the front and rear discs is 90 cm, the chassis height is 75 cm and the discs are 24.5 cm apart. The large working area of the discs ensures the most efficient transfer of soil from the front to the rear, and facilitates working with minimum residue accumulation.

CHASSIS:  Reinforced solid chassis, suitable for working in difficult conditions and providing ease of use with its simple and compact structure. The connection to the tractor is by a three-point hitch or trailer system, depending on the size of the machine and user preference. In models with a large working width, the chassis is folded into the road position hydraulically.

DISKS:  51 and 56 cm optional disc diameters, vertical position angle 11 °, horizontal direction angle 18, disc thickness 4/6 mm, disc distance 24 cm. Each disc arm is connected independently.

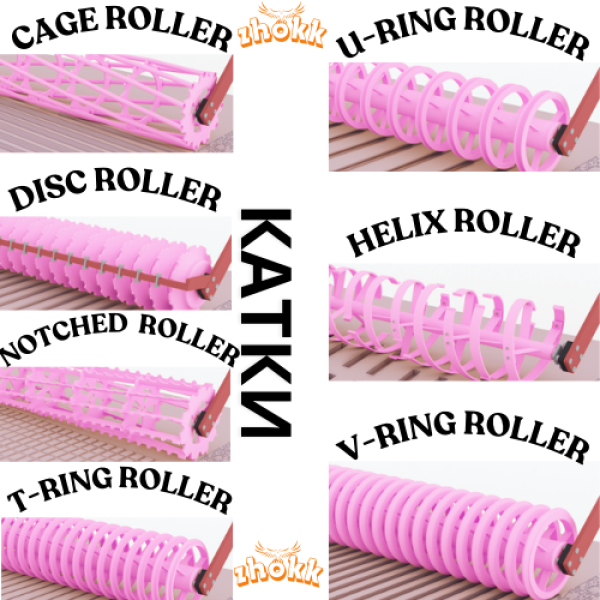

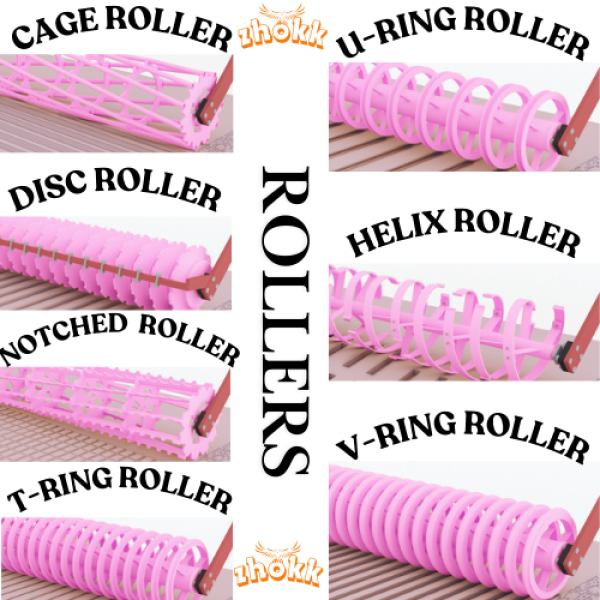

ROLLER:  Seven different roller options are available, depending on user preference. It can optionally be folded into the road position hydraulically.

Total price:  Upon request

Transport, cost (truck/container): Upon request
