Customization:
Available (Customer Colour, Logo)
Certification:
ISO
Warranty:
Available
Model: FARFAN
Trademark:
ZHOKK

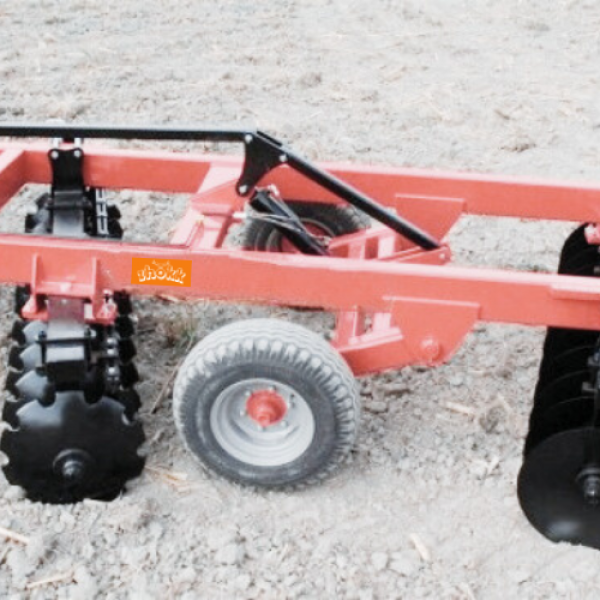

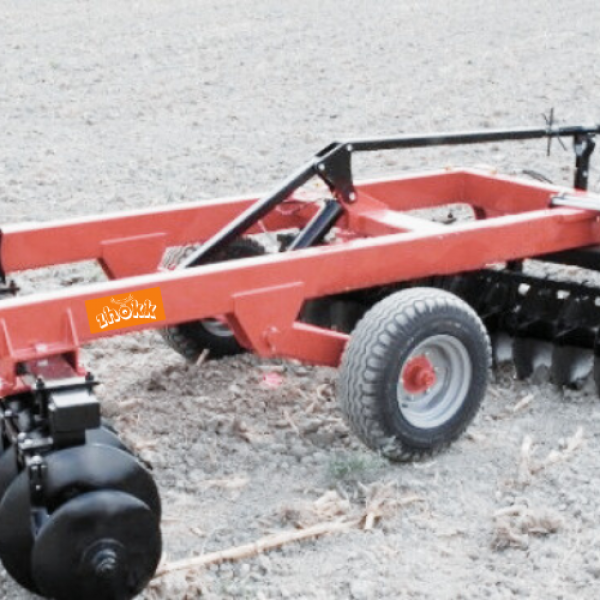

Heavy Duty Frame Discharrow,Offset ;
These are being manufactured as from 18discs until 36discs without folding and
from 40discs until
56discs with foldable wings.It has more

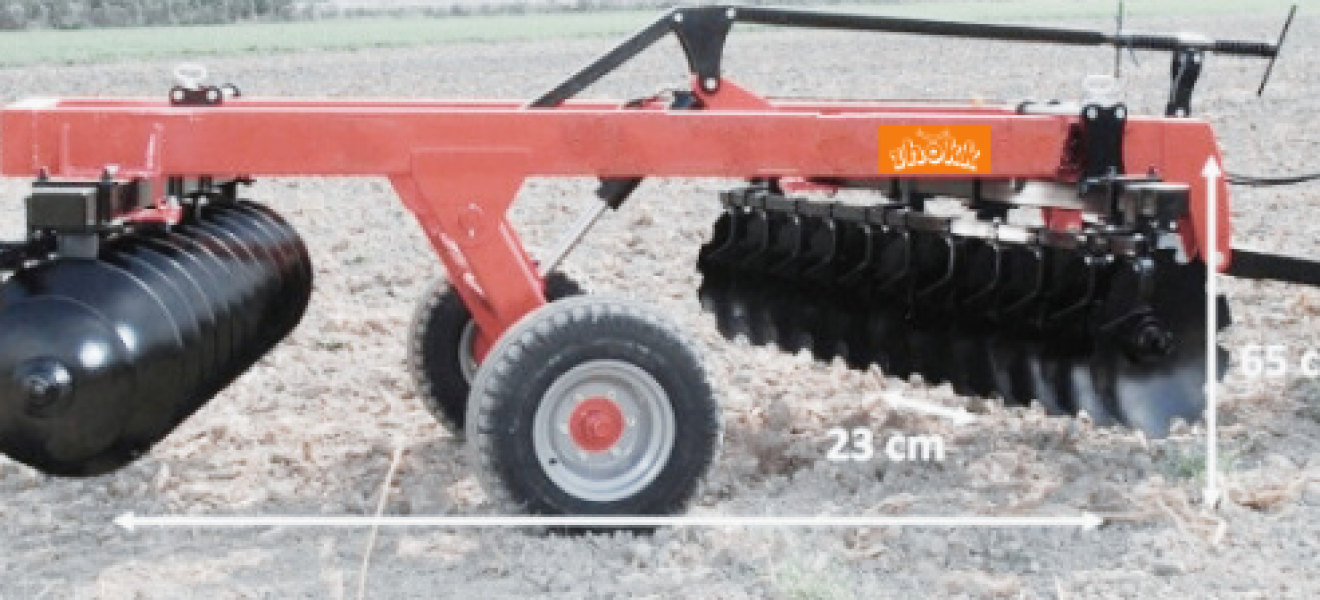

model alternatives with 22cm Disc spaces ,560mm – 610mm – 660mm disc diameters
, plain and
notched type discs.These alternatives
enable to farmers for choosing the most suitable equipment for their own

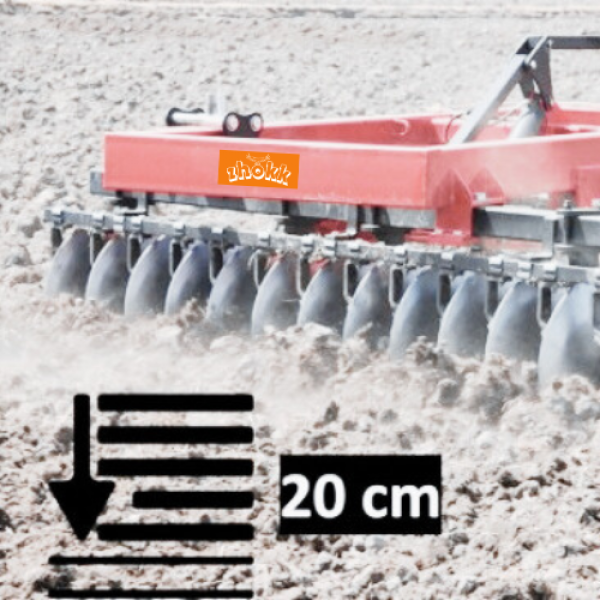

conditions.The disc direction angle that can be opened to 22 degree gets good
soil working and also desired working depth. 2 pieces of land type tyres with
the size 10.0/75
15.3 are used for each machines. It
is absolutely a suitable equipment for diminished soil working and minimum soil
working .
(1) HEAVY DUTY BEARING - used on tine
linkages provide the discs to spring at the vertical way. This vibrant movement
of the disc raise the smashing effect of the soil. The bearing chassis that
tied to frame with
rigid and a strong tine and bearing
covers are produced with sensitive dimension on CNC bars as special cast iron.
There are double 6215 bold bearings and 2 oil felts with double 50x80x13 seals
inside. The strong structure of the bearings can resist to resistance while working
on the soil. It had been provided a bearing without a problem when the casting quality,
sensitive process and bearings integrated.

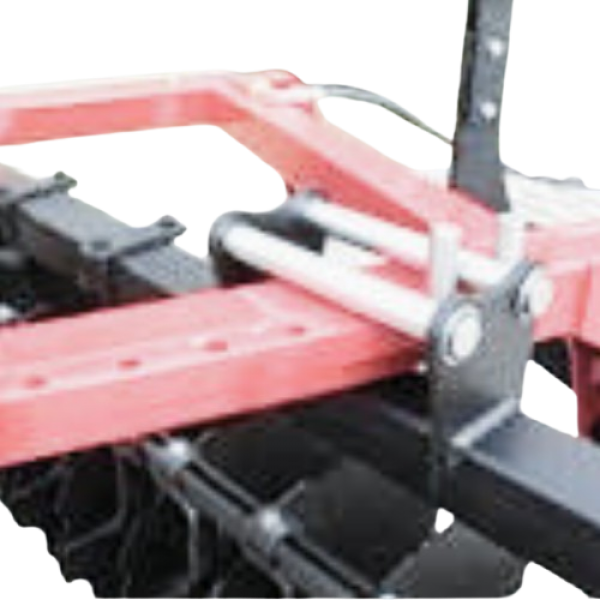

(2) EASY GANG ANGLE ADJUSTMENT- The angle is altered mechanically with a series
of holes and a locking pin. We can control the direction angels that effects to
working depth,the properties of overturn and hackling, from the perforated mechanism
on the frame.In accordance
with the demand this setting can be
done by the help of hydraulic pistons.

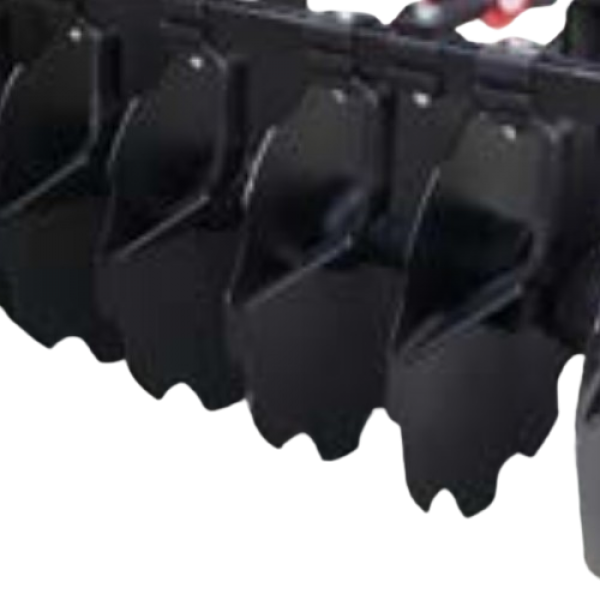

(3) HEAVY DUTY ADJUSTABLE SCRAPERS – Our
special products;th scrapers are composed by steel chassis and the points that
is in the suitable norm for disc concavity.It can be worked on all soil conditions
with the help of its strong structure. It can be fixed when the points
are abreded.
(4) ADJUSTABLE DRAWBAR - Adjustable
drawbar ensures a safe transport during road and solid pull of disc in field.
Total price: Upon request
Transport, cost (truck/container):
Upon request
