Customization:
Available (Customer Colour, Logo)
Certification:
ISO
Warranty:
Available
Model: CALIO
Trademark:
ZHOKK

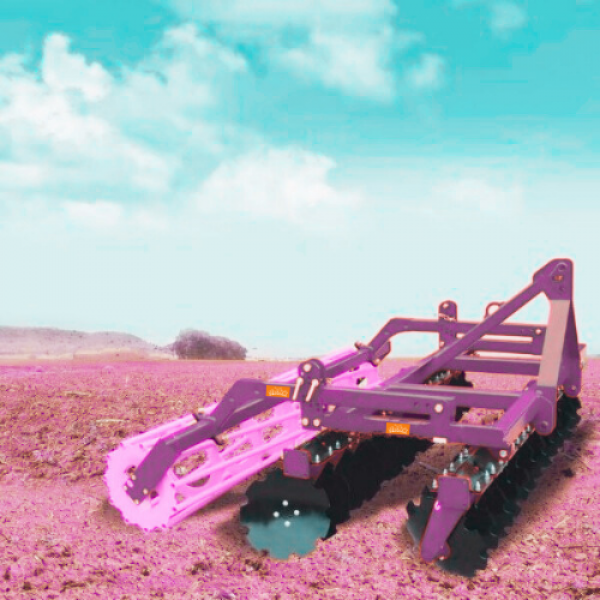

The CALIO
has a large usage alternatives on soil processing especially for seed bed preperation
and stubble processing. It decreased the product costs
by its
combined design.Requested soil processing quality can be reached if it is

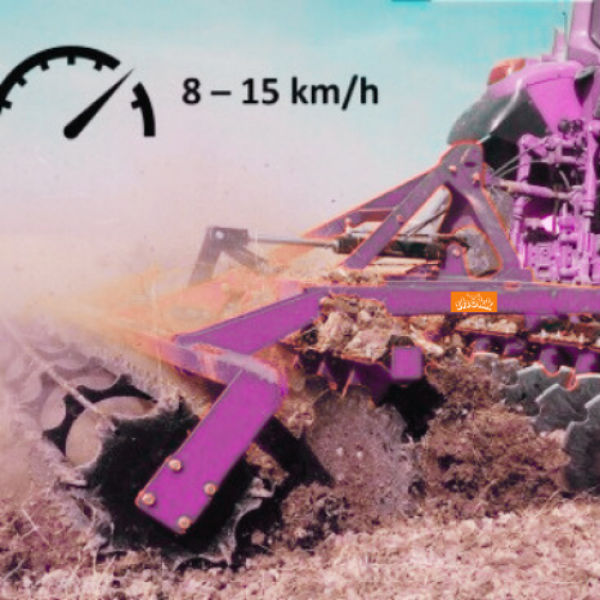

worked until 15km/h according to soil conditions.The high working capasity
brings low costs and low fuel. 510mm notched discs had been tied to frame with
rubber roll springs.Adding the soil and the plant parts to the soil by
crumbling can be done in a high performance by this structure. It is an ideal
machine for minimum soil processing that becomes important in the last years.
It is possible with this machine to mix by crumbling plant parts in the best
way and to become useful faster for the plant , consequently to bring in
biological balance of the soil again.
(1) STRONG DISC BEARINGS - Every disc had
been disposed to special design sealed bearing chassis with 2 conic bearings.
The disc bearings do not have to be greased which reduces downtime. This
ensures lower maintenance costs .
(2) RUBBER SPRUNG TINE - Rubber battens with 40mm
diameter that is used on tine linkages provide the discs to spring at the
vertical way. This vibrant movement of the disc raise the smashing effect of
the soil.

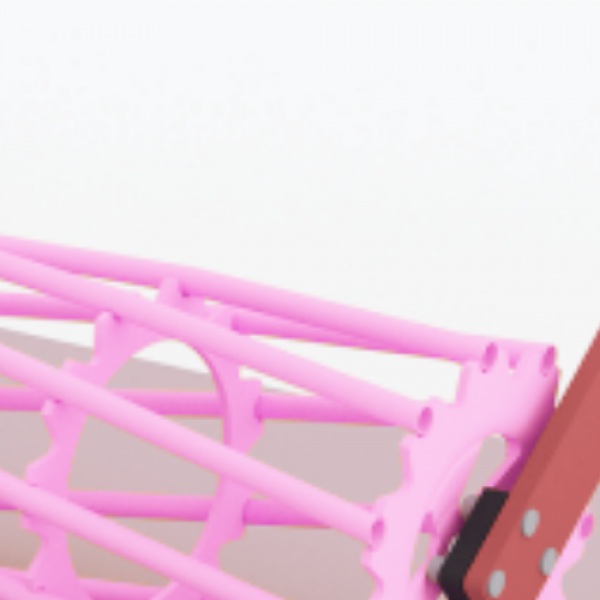

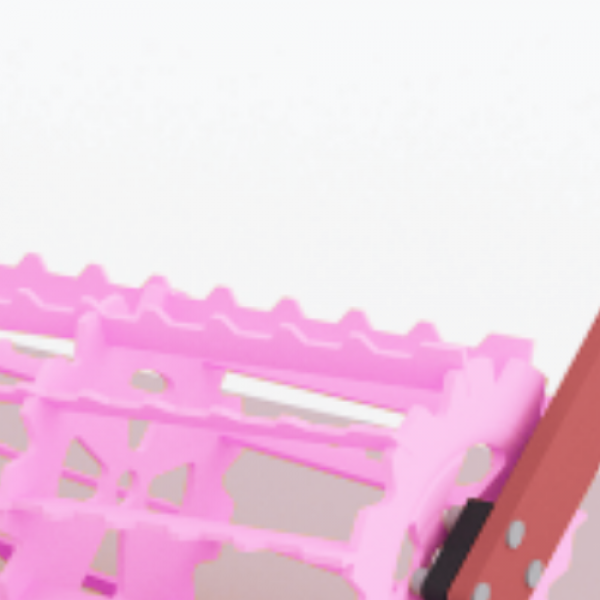

(3) NOTCHED ROLLER - Levelling and better
smashing can be provided by the roller which is designed from 580mm diameter
and staves. It works without an obstruction and also a problem.
(4) EASY WORKING DEPTH ADJUSTMENT - Working
depth can be adjusted by changing the height of roller manually. Holes are used
for fixing the adjustment to any measure.
Total
price: Upon request
Transport,
cost (truck/container): Upon request
