Customization: Available (Customer Colour, Logo)

Certification: ISO

Warranty: Available

Model: AMIO

Trademark: ZHOKK

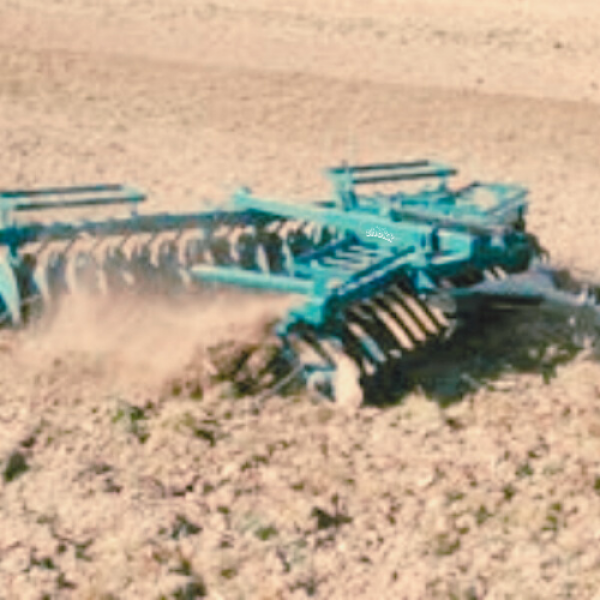

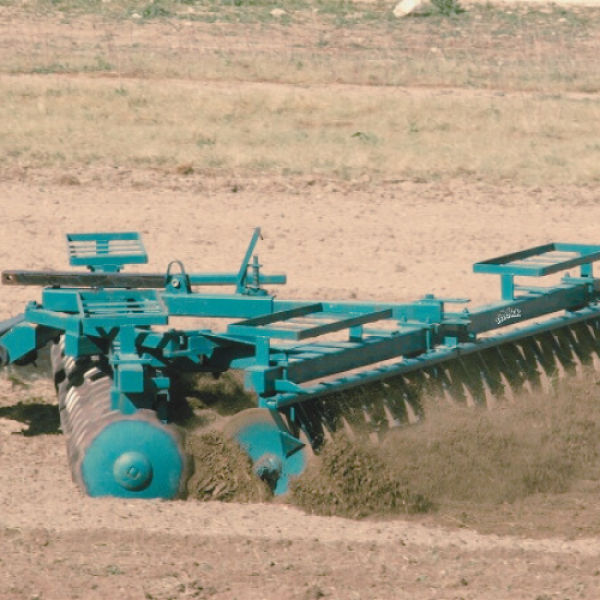

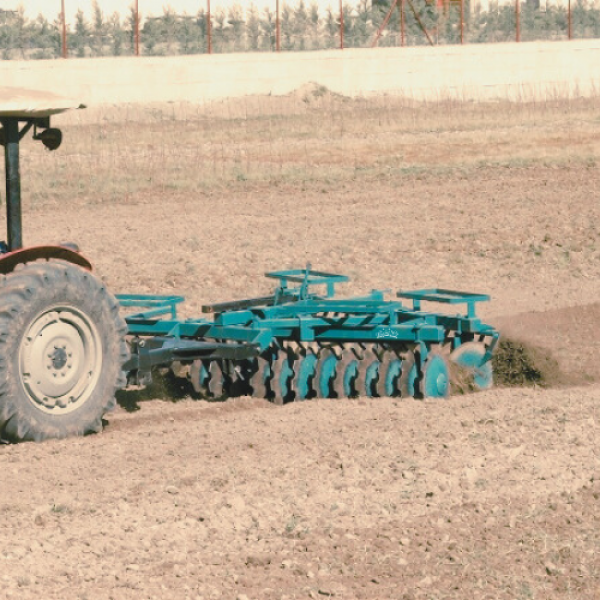

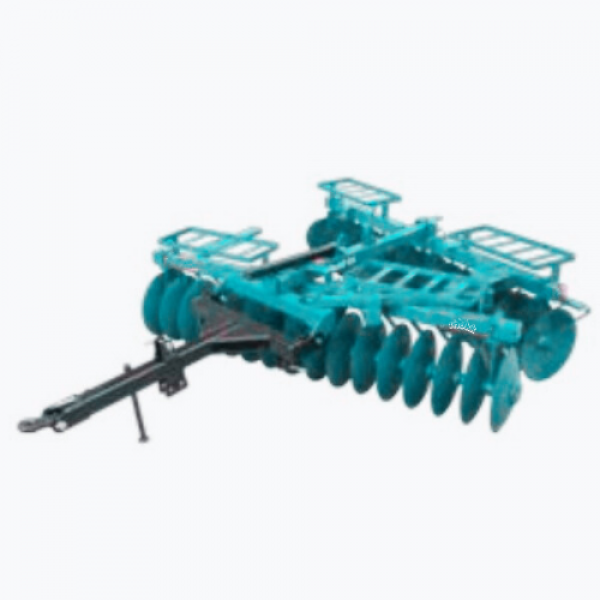

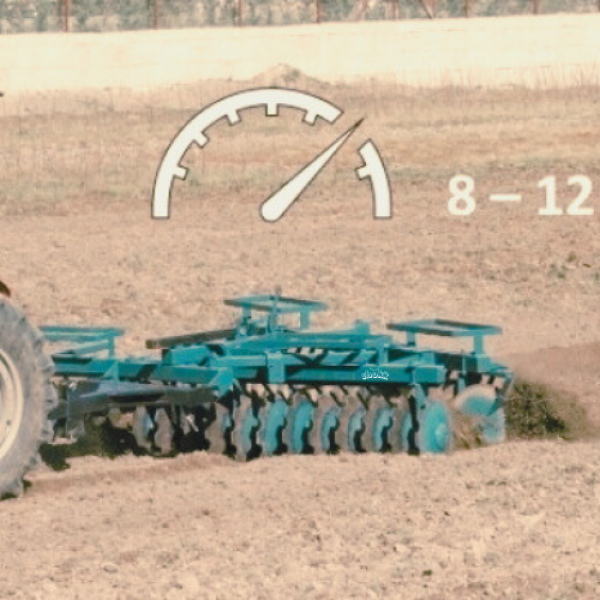

Our trailed offset disc harrow AMIO is used for secondary soil cultivation, stubble shredding and mixing, and for mixing and cultivation in orchards. It is a practical, easy-to-use product that can meet the farmer's needs in other soil operations. It can be used for mixing discarded manure with the soil, for weed control, the processing of tree spaces in orchards, and for the preparation of the seedbed before planting.

After plow secondary tillage, stubble shredding and mixing mixing and processing of agricultural land in the garden. Practice to meet the needs of the farmer's other ground operations, our easy to use product. Be taken in the event of business, business success, which is used as a type of practical use in transport suspended our high product. In processing the soil after the plow, the mixing thrown fertilizer in the soil, the weeds, garden processing trees Search in agriculture, can in seed bed preparation in the 0-19 degrees without the need to open  direction before planting driver assistance. Operating speed is higher than the other tillage machines, operating costs low, it is more economical. 460 mm-510 mm disc diameter and 24 to 48 disc from the disc, Our products are in a 560 mm-610 mm disc diameter and disc 16-18-20-22. You can select the most appropriate model to your own requirements models. Increasing the effect of smashing had been aimed by choosing the disc distance as 175mm. Notched disc alternative can be chosen for hayfields and hard soil conditions. Disc direction angles canbe adjustted from the points that the batteries is tied to frame. Working depth can be raised by adding extra weight on to weight section on to the frame.

Advantages of Our Amio Trailed Disc Harrow:

EASY ANGLE ADJUSTMENT

The working depth of the discs and direction angles that effect to tipping and smashing effect can easily adjustable from the 11 punched profile on the chassis. The operator can adjust the angles on the tractor between 0-19 degrees without unlocking by the help of rope. As optional the adjustment can be done with hydraulic control.

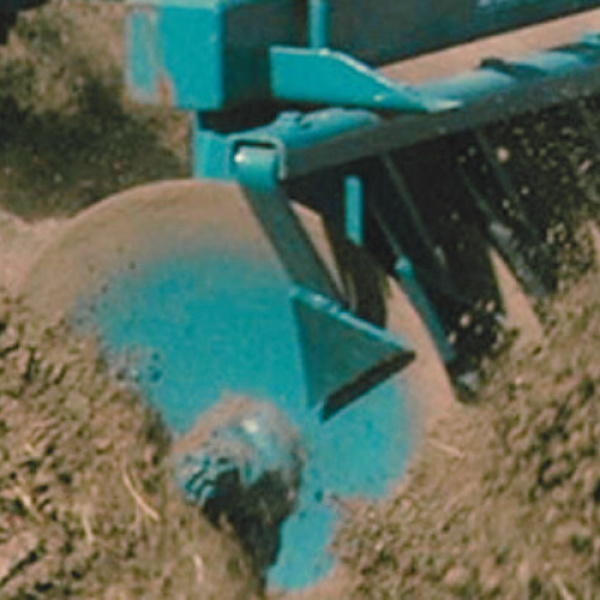

ADJUSTABLE SCRAPERS

Two types of scrapers are used as plate pres and supported blade scraper. The scrapers which are our special products had been produced with steel plate in special form, they are used on 460mm discs. The scrapers that was composed steel blade and the point in the suitable form for disc concavity are used on 510mm,560mm and 610mm discs. It works without a problem on all soil conditions with its strong structure.It can be adjusted when its point abrades.

STEEL CAST SPACER

The spacers that compose the battery are produced as cast iron. It has high resistance against shock strokes and the risc of breaking. As optional the steel spacers can be used with 560mm and 610mm diameter.

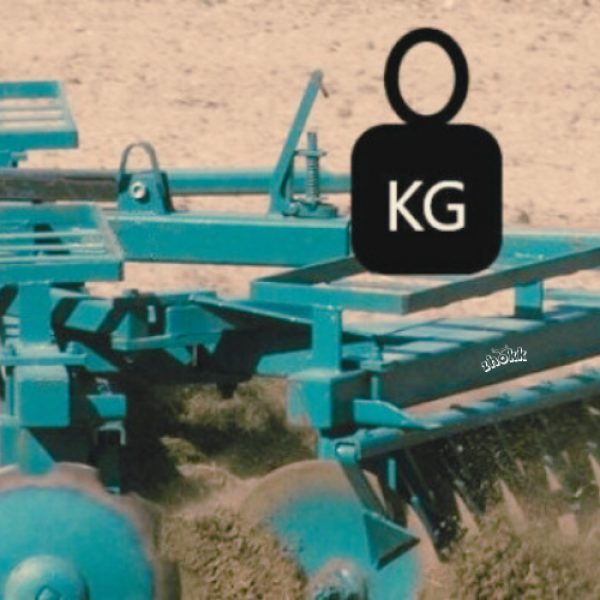

SPACE FOR EXTRA WEIGHT

The machine can reach to requested working depth with frame weight and direction angle in the normal soil conditions. The working depth can be raised by adding extra weight to the weight sections on the frame on the conditions that can not be gotten enough working depth. The weight must be disarranged on to the frame.

Total price:  Upon request

Transport, cost (truck/container): Upon request
